Heavy-duty disc harrows are robust agricultural tools primarily designed for breaking up soil, mixing materials, and creating a smooth, level surface. While they are traditionally associated with farming, their versatility has made them increasingly valuable in civil engineering, groundwork preparation, and landscaping projects. Whether for lime incorporation, site clearance, or soil conditioning, disc harrows offer unmatched efficiency in handling challenging terrain and compacted surfaces.
This article explores the various applications of heavy-duty disc harrows beyond traditional agriculture, focusing on their roles in civil projects, groundwork operations, and landscaping development.
What Is a Heavy-Duty Disc Harrow?

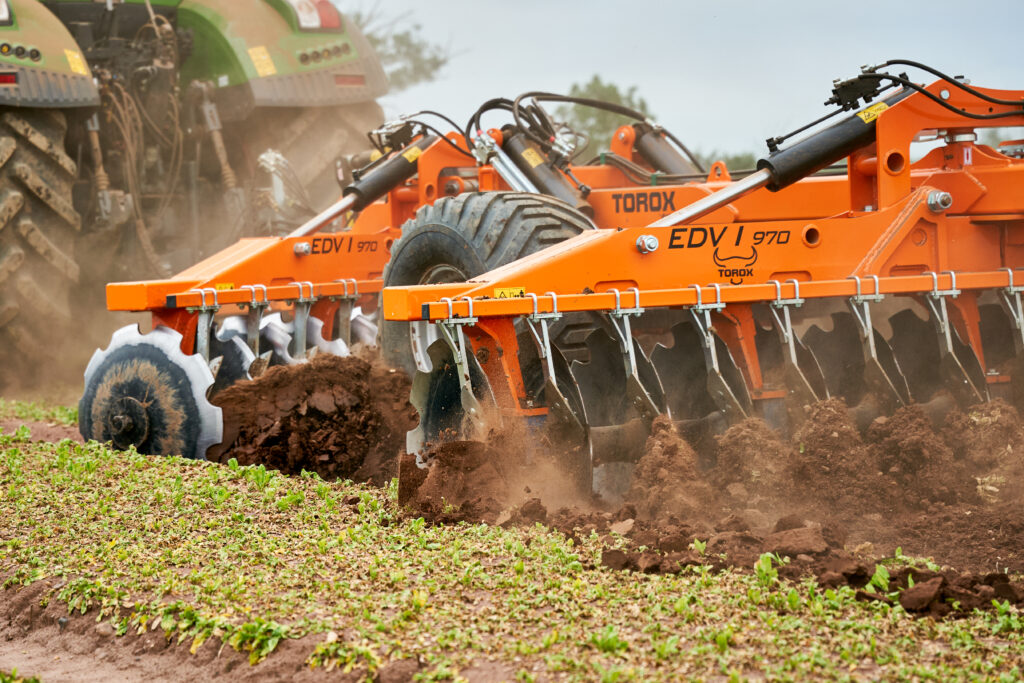

A disc harrow is a piece of machinery with rows of concave metal discs, often notched, mounted on a frame. These discs are arranged in such a way that they slice into the soil at an angle, turning it over, breaking up clumps, and mixing in residues or additives. Heavy-duty disc harrows are built for more demanding applications and are capable of handling rocky soil, compacted surfaces, and thick vegetation. They are typically towed by tractors or mounted on construction equipment.

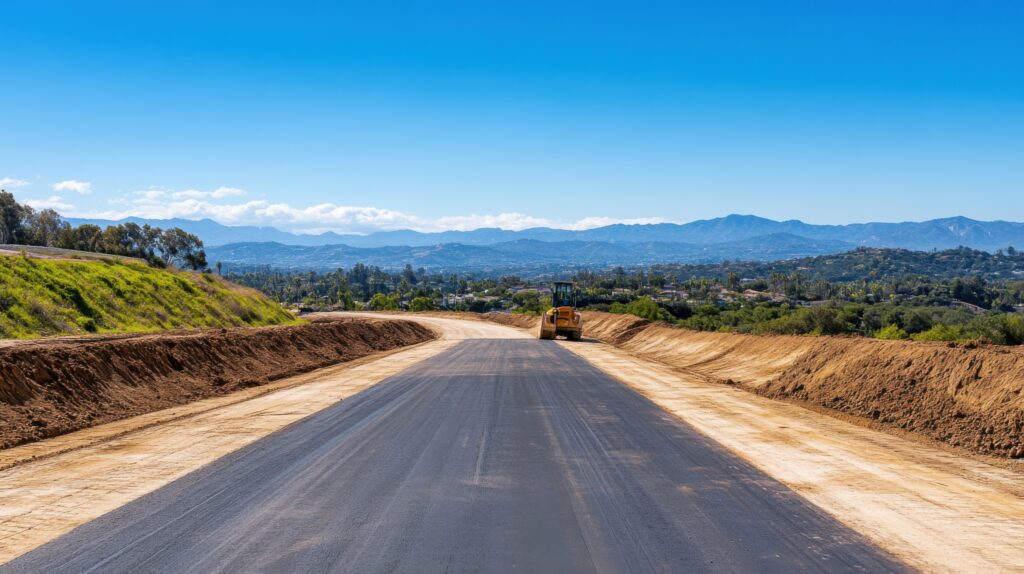

1. Ground Preparation in Civil Engineering Projects
In civil engineering, particularly in large-scale infrastructure development projects such as roads, bridges, and building sites, ground preparation is a fundamental first step. The soil must be properly conditioned to provide a stable and supportive base.
a. Soil Conditioning
Heavy-duty disc harrows break up compacted soil layers, which is essential when working with previously disturbed or naturally hard ground. Proper soil aeration reduces water pooling, increases drainage, and allows for easier compaction — a requirement for any construction base.

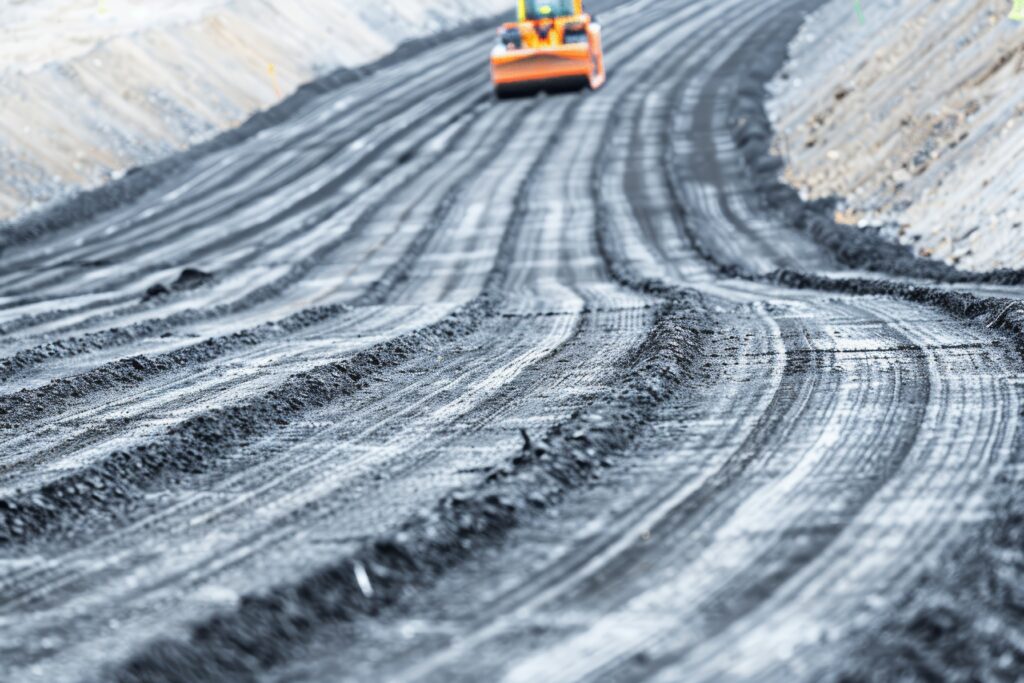

b. Subgrade Layer Improvement
In road construction, disc harrows are used to incorporate materials such as lime or cement into the soil, modifying and stabilising subgrade layers. This reduces swelling potential and increases the load-bearing capacity of the base material.
c. Levelling and Grading
While graders are often used for precise levelling, disc harrows help by roughly levelling uneven areas before more accurate grading is performed. This speeds up operations and reduces wear on more sensitive levelling equipment.
2. Lime Incorporation and Soil Stabilisation
Lime stabilisation is a key ground treatment method used to improve clay-heavy or wet soils in civil and groundwork projects. The addition of lime raises the pH and triggers chemical reactions that alter the soil’s properties, making it firmer and more workable.
a. Incorporation Efficiency
Disc harrows excel at thoroughly mixing lime with the existing soil. Their deep-penetrating discs ensure the lime is distributed evenly throughout the target layer, enhancing the chemical reaction needed for soil modification.
b. Cost-Effectiveness
Using heavy-duty disc harrows for lime incorporation reduces the need for multiple machines. Their ability to mix and break down the soil simultaneously minimises passes across the site, lowering fuel consumption and labour hours.
c. Environmental Benefits
Even lime distribution minimises environmental impact. Over-concentration of lime in certain areas can lead to runoff or pH imbalance. Disc harrows ensure even incorporation, improving soil sustainability and reducing ecological disruption.
3. Site Clearance for Construction and Landscaping
Before construction or landscaping begins, sites are often covered in brush, small trees, roots, and other debris. Clearing this efficiently is essential to prevent machinery damage and facilitate smoother operations.
a. Vegetation Control
Heavy-duty disc harrows can cut through dense brush and small woody material, making them ideal for initial site preparation and clearing. Their aggressive design chops plant material into smaller pieces, making it easier to manage or incorporate into the soil.
b. Root and Stump Fragmentation
Larger roots and stump remnants can interfere with excavation or levelling. Disc harrows, especially those with serrated or notched discs, break apart these obstructions and leave the ground in a more workable state.
c. Reducing the Need for Burning or Hauling
Instead of removing organic debris off-site or burning it (which may be restricted), harrows can help incorporate plant matter into the soil. This speeds up decomposition and enriches soil organic content—particularly useful in landscaping.

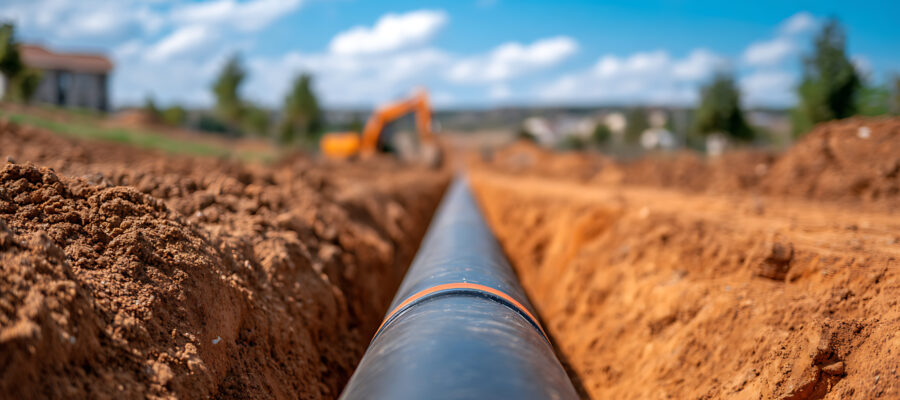

4. Groundworks for Utility Installation
Installing utilities such as drainage systems, pipelines, and cables requires trenching and backfilling operations that depend on stable ground conditions.
a. Pre-Trenching Preparation
Before trenching begins, the ground must be loosened. Disc harrows provide an ideal tool for loosening compact soils, reducing the wear on trenchers or excavators and increasing operational speed.
b. Backfill Integration
After utilities are installed, the backfill must settle properly. Harrows can be used to break up and distribute backfill materials, helping avoid air pockets or uneven compaction.
5. Landscape Development and Restoration
Landscaping projects often involve significant reshaping of land—grading, seeding, turf establishment, and erosion control. Disc harrows are highly effective in these operations, especially on large or challenging sites.
a. Creating Seedbeds
For areas being seeded (e.g., grass, wildflowers, or erosion control vegetation), harrows help create a fine tilth seedbed. The soil needs to be loose and well-aerated to support healthy germination and root growth.
b. Slope Stabilisation Preparation
In erosion-prone areas, establishing vegetation is crucial to stability. Harrowing helps incorporate erosion control materials (e.g., coir, straw mulch, or geotextiles) and improves contact between seeds and soil.
c. Aesthetic and Functional Grading
In high-end landscaping, such as parks, estates, and golf courses, disc harrows are used to shape and contour land. While fine grading is later performed with laser-guided equipment, harrows perform the rough preparation that enables smoother finishing.
6. Post-Construction Land Rehabilitation
Once construction ends, the land surrounding the site often requires rehabilitation. Soil may be compacted, contaminated, or stripped of vegetation.
a. Soil Decompaction
Heavy construction equipment often leaves behind heavily compacted areas, especially access roads or staging zones. Disc harrows are used to break up compacted layers and restore soil porosity and drainage.
b. Incorporation of Soil Amendments
Rehabilitation often includes adding compost, topsoil, or soil conditioners. Harrows mix these amendments evenly into the soil, improving fertility and structure.
c. Encouraging Regrowth
For environmentally sensitive projects, restoring natural vegetation is essential. Disc harrows prepare the ground to encourage the regrowth of native species or reseeded plants, accelerating the return of biodiversity.
7. Working in Wet or Heavy Soil Conditions
Certain regions or seasons involve working with wet, sticky, or clay-dominated soils. These conditions challenge traditional excavation and grading equipment.
a. Breaking Surface Tension
Disc harrows are effective in cutting through and fracturing wet soils, helping to dry them out and make them more manageable for subsequent construction or landscaping steps.
b. Improving Drainage Patterns
Used strategically, harrows can help shape micro-contours that improve water runoff and prevent pooling—ideal in site preparation for sports fields, gardens, or parking areas.
8. Complementing Other Groundwork Equipment
Heavy-duty disc harrows rarely work alone. They are often used in combination with:
- Rippers or subsoilers: For deeper soil fracturing, followed by disc harrowing to refine and mix.
- Graders or dozers: For final shaping after initial harrowing.
- Cultivators and rotavators: In landscaping, harrows precede these tools to reduce mechanical strain.
- Spreaders and applicators: When adding lime or other materials, disc harrows follow spreaders to incorporate substances evenly.
This interoperability allows disc harrows to serve as the backbone of efficient groundwork operations.
Key Advantages of Using Heavy-Duty Disc Harrows
Durability: Handles rocks, roots, and rugged terrain
Versatility: Suitable for clearing, mixing, levelling, and grading
Cost-Efficiency: Reduces the number of machines and man-hours required
Environmental Impact: Enables in-situ treatment and incorporation of materials
Speed: Rapid coverage of large areas
Soil Health: Enhances aeration and organic matter incorporation
Final Thoughts
Heavy-duty disc harrows have evolved far beyond their agricultural roots. Civil engineering, groundworks, and landscaping offer a powerful, versatile, and cost-effective solution for a variety of essential site preparation tasks. From lime incorporation and site clearance to soil conditioning and land rehabilitation, disc harrows have proven themselves as indispensable tools across a broad spectrum of outdoor construction and restoration projects.
Their value lies not only in their mechanical strength but also in their ability to enhance soil performance, support environmental sustainability, and reduce project timelines. Whether you’re a contractor, landscape architect, or civil engineer, investing in—or hiring—heavy-duty disc harrowing services could be a game-changing addition to your groundwork arsenal.
